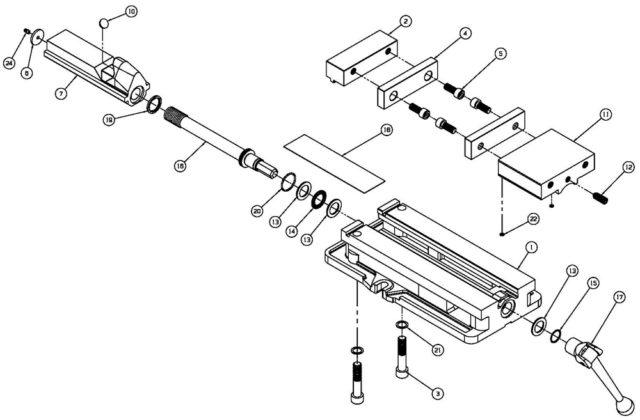

D675 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
71Kurt Nut & Screw Subassembly - D688-3-SAD688-3-SA$128.00
92Kurt Screw, Drive, #2 X .25 - 07-023007-0230$3.00
191Kurt Internal Brush Seal - D675-211D675-211$7.00
181Kurt Chip Guard, Long - DL600-249DL600-249$4.00
Kurt D675 Repair Kit - D675-KITD675-KIT$19.00
21Kurt Stationary Jaw - D675-6BD675-6B$129.00
201Kurt O-Ring, Buna N, #124 - D675-68D675-68$3.00
61Kurt Grease Fitting Plug - D675-292D675-292$4.00
151Kurt Spiral Retaining Ring - D675-217AD675-217A$4.00
111Kurt Movable Jaw - D675-2D675-2$165.00
101Kurt Spherical Segment - D60-9D60-9$6.00
42Kurt Jaw Plate, 6" - D60-7D60-7$38.00
133Kurt Thrust Bearing Washer - D60-42D60-42$4.00
141Kurt Thrust Bearing - D60-41D60-41$4.00
171Kurt Handle Assembly - D60I-10-SAD60I-10-SA$31.00
241Kurt Drive Type Fitting - 3300-C3300-C$3.00
222Kurt O-Ring, Buna N, 008 - 225-01225-01$3.00
212Kurt Lock Washer, .699 X .051 - 06-301606-3016$3.00
121Kurt Screw, SHSS, 1/2-13 X 1-1/4 - 01-393801-3938$5.00
32Kurt Screw, SHCS, 5/8-11 X 3 Long - 00-148900-1489$4.00
54Kurt Screw, SHCS, 1/2-13 X 1-1/4 - 00-141900-1419$3.00
