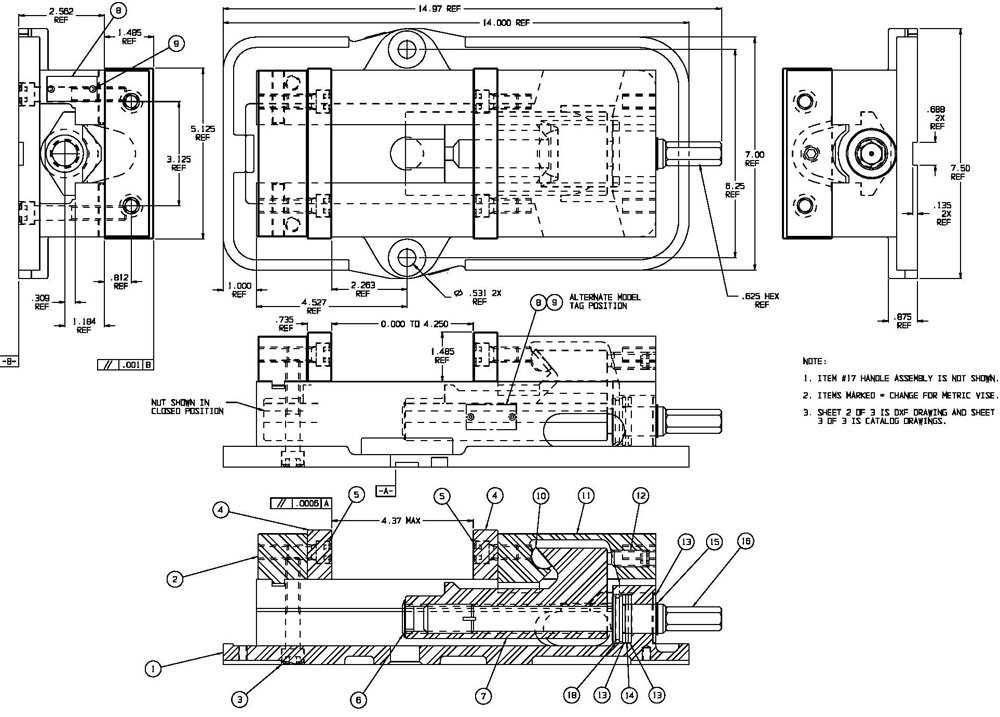

D50 Replacement Parts
| Callout | Qty Needed | Name | Part No. | Price | Buy |
|---|---|---|---|---|---|
| D50-26 PIVOT PIN | D50-26 | $18.00 | |||
| 18 | 1 | Kurt O-Ring, Buna N, #123 - D50-68 | D50-68 | $6.00 | |
| 15 | 1 | Kurt Spiral Retaining Ring - D50-217A | D50-217A | $8.00 | |
| 6 | 1 | Kurt Plastic Yellow Cap - D50-12A | D50-12A | $6.00 | |
| 4 | 2 | Kurt Jaw Plate - D50-7 | D50-7 | $96.00 | |
| 13 | 3 | Kurt Thrust Bearing Washer - D50-42 | D50-42 | $8.00 | |
| 14 | 1 | Kurt Thrust Bearing - D50-41 | D50-41 | $8.00 | |
| Kurt Handle Assembly - D50-10A-SA | D50-10A-SA | $115.00 | |||
| 12 | 1 | Kurt Screw, SHSS, 1/2-13 X 1-1/4 - 01-3938 | 01-3938 | $8.00 |
