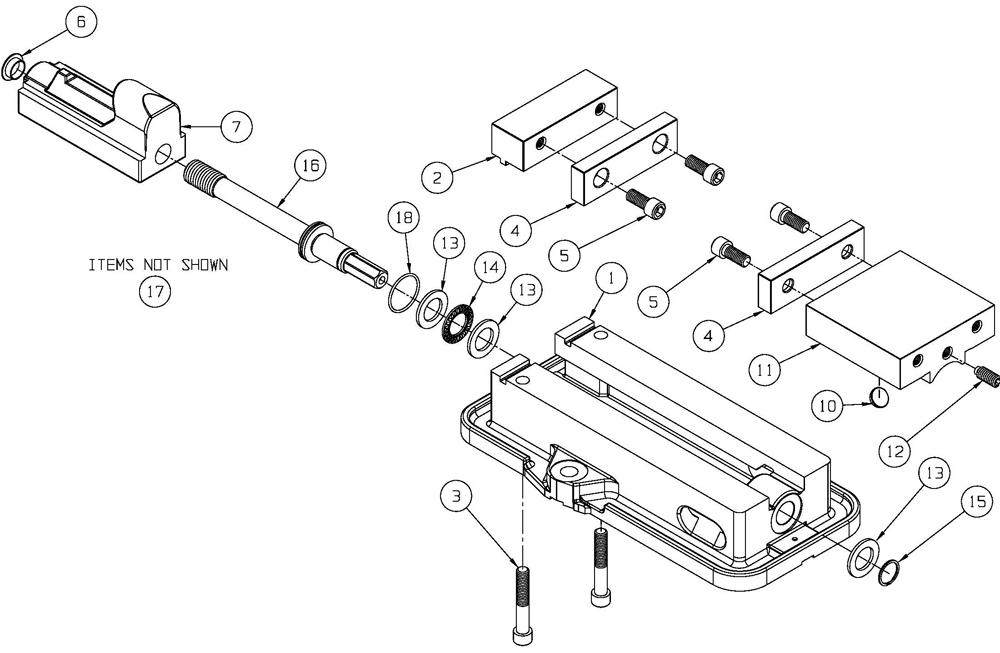

D40 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
92Kurt Screw, Drive, #2 X .25 - 07-023007-0230$5.00
Kurt T-bolt, Nut and Washer, 2 each - D40-27-SAD40-27-SA$66.00
54Kurt Screw, SHCS, 3/8-16 X 7/8 Long - 00-135300-1353$5.00
181Kurt O-Ring, Buna N, #024 - D40-68D40-68$5.00
133Kurt Thrust Bearing Washer - D40-42D40-42$7.00
61Kurt Plastic Cap - D40-12AD40-12A$5.00
Kurt D40 Repair Kit - D40-KITD40-KIT$17.00
101Kurt Spherical Segment - D40-9D40-9$6.00
42Kurt Jaw Plate, 4" - D40-7D40-7$48.00
21Kurt Stationary Jaw - D40-6AD40-6A$119.00
161Kurt Screw - D40-5AD40-5A$75.00
141Kurt Thrust Bearing - D40-41D40-41$7.00
71Kurt Nut w/ D40-12A Cap - D40-3D40-3$87.00
151Kurt Spiral Retaining Ring - D40-217AD40-217A$6.00
111Kurt Movable Jaw - D40-2D40-2$164.00
171Kurt Handle Assembly - D40XI-10-SAD40XI-10-SA$43.00
121Kurt Screw, SHSS, 3/8-16 X 7/8 - 01-390801-3908$10.00
32Kurt Screw, SHCS, 3/8-16 X 2-1/4 Long - 00-136200-1362$5.00
