KTR35 Replacement Parts

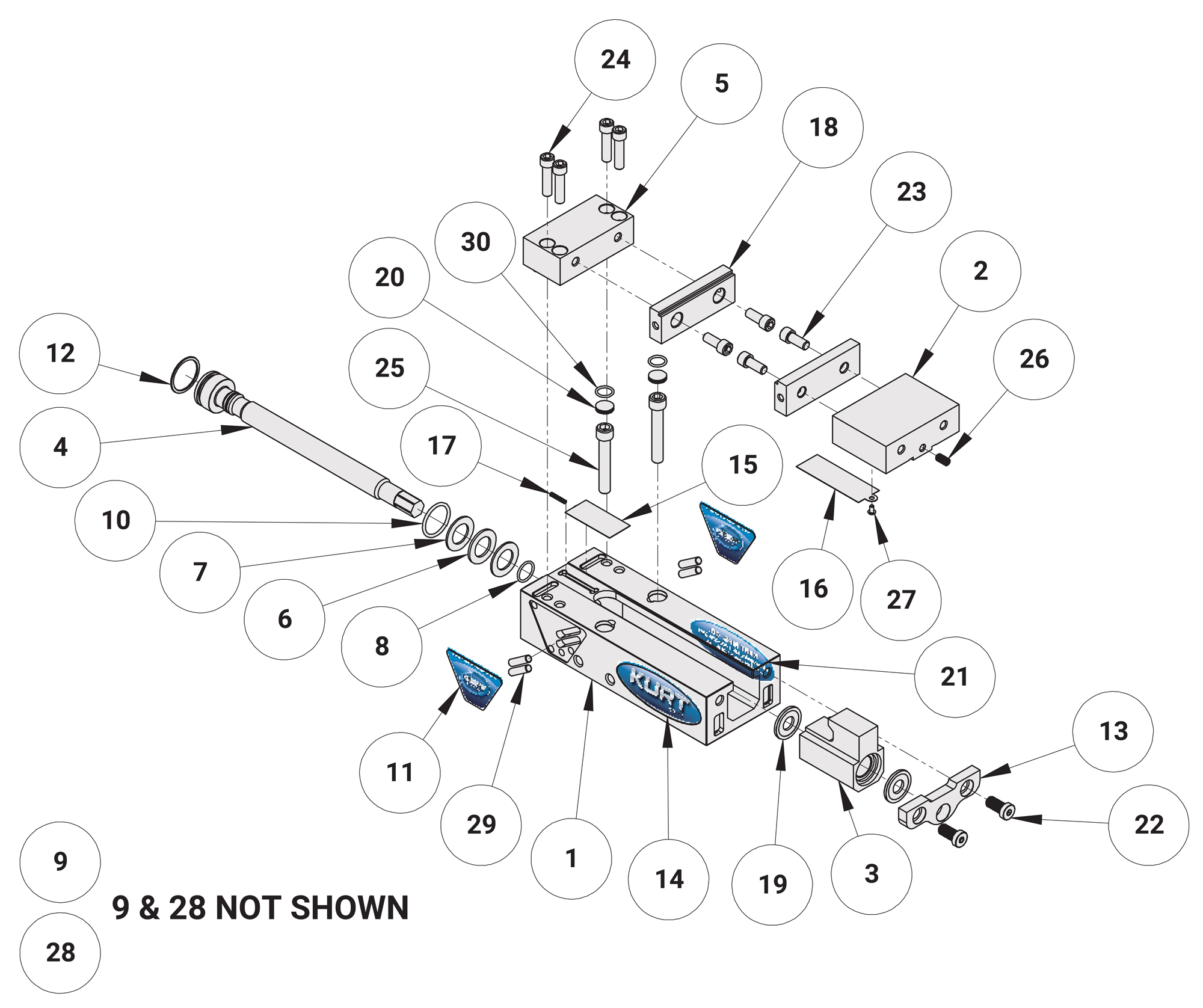

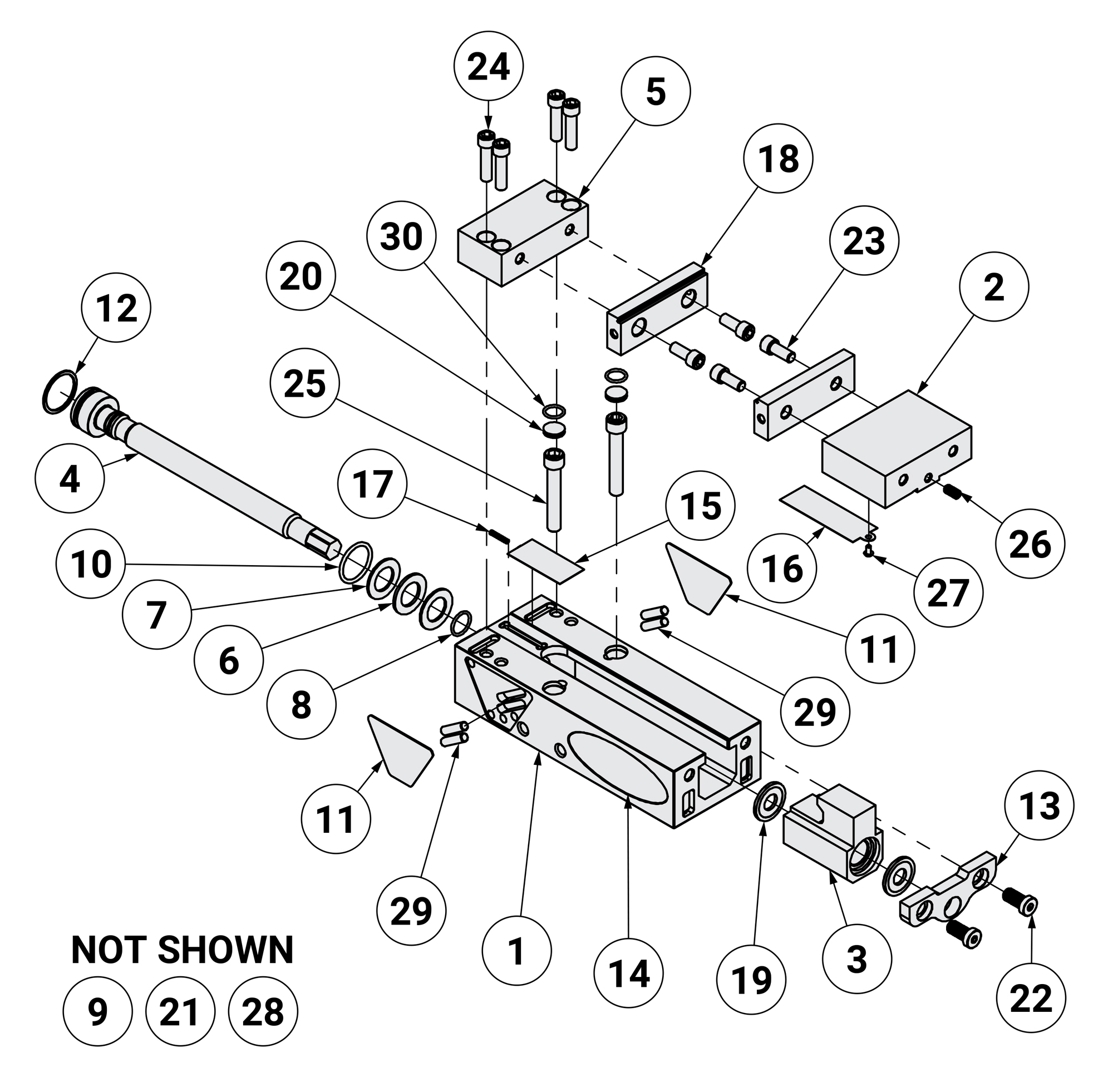

KTR35 Mechanical Drawing

CalloutQty NeededNamePart No.PriceBuy
261SCREW, CP SHSS, 1/4-20 X 0.50 - 01-307601-3076$7.00
131SCREW SUPPORT - KTR35-224-CPKTR35-224-CP$111.00
244SHCS, 5/16-18 x 1-1/4 - 00-132600-1326$7.00
112MAGNETIC STICKER - KTR35-111KTR35-111$13.00
171Kurt Compression Spring - SDW35-311SDW35-311$10.00
282Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$7.00
202Kurt Protective Plug - 3400V-1913400V-191$10.00
222Kurt 3/8-16 X 0.75LG. LHCS - 00-335200-3352$7.00
192Kurt Brush seal - MX350-211MX350-211$20.00
81Kurt O-Ring, Buna-N 90 Dur #016 - SDW35-96SDW35-96$7.00
161Kurt Chip Guard, Long - SDW35-249SDW35-249$9.00
151Kurt Chip Guard Short - SDW35-248SDW35-248$10.00
121Kurt Retaining Ring - SDW35-147SDW35-147$7.00
101Kurt O-Ring, Buna-N 90 DUR #021 - SDW35-119SDW35-119$7.00
51Kurt Stationary Jaw - SDW35-6SDW35-6$205.00
41Kurt Screw - SDW35-5SDW35-5$118.00
31Kurt Nut - SDW35-3SDW35-3$130.00
21Kurt Movable Jaw - SDW35-2SDW35-2$304.00
182Kurt Jaw Plate, Stepped - ML35-32-CPML35-32-CP$136.00
72Kurt Thrust Bearing Washer, 0.060-0.063 - DL400-42ADL400-42A$10.00
61Kurt Thrust Bearing - D40-41D40-41$10.00
271Kurt Screw, BHCS, #6-32NC X 1/4 - 03-011003-0110$7.00
252Kurt Screw, SHCS, 3/8-16 X 2-1/4 Long - 00-136200-1362$7.00
234Kurt Screw, SHCS, 5/16-18 X 3/4 Long - 00-132100-1321$7.00
