Kurt PFW420 Vise Replacement Parts

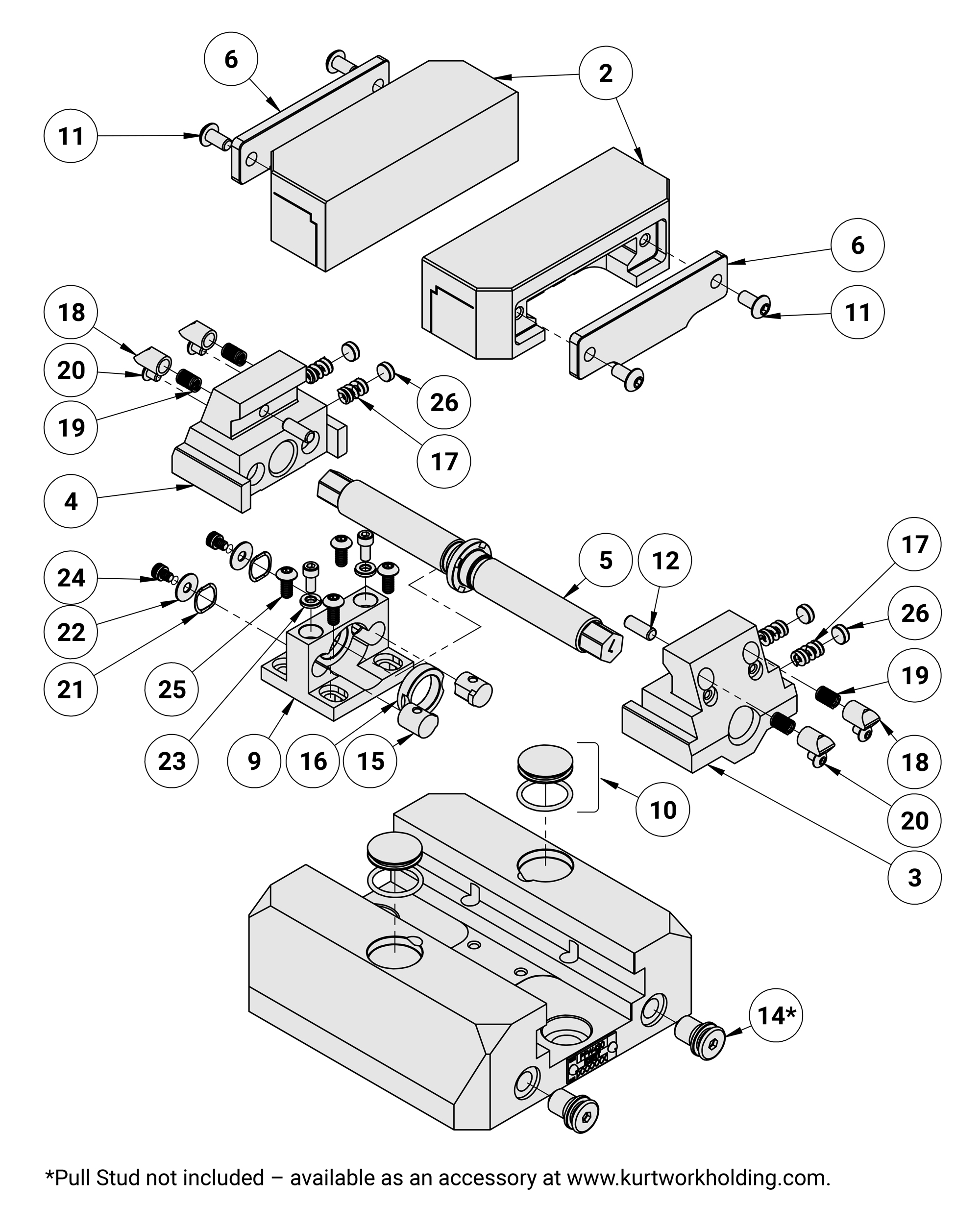

Kurt PFW420 Replacement Parts Diagram

Callout	Qty Needed	Name	Part No.	Price	Buy
14	2	Pull Stud for Lifting Vise - PF420-367-CP	PF420-367-CP	$42.00	Pull Stud for Lifting Vise - PF420-367-CP quantity
17	4	Kurt Compression Spring - PF420-169	PF420-169	$7.00	Kurt Compression Spring - PF420-169 quantity
26	4	Kurt Pad Guide - PF420-16	PF420-16	$13.00	Kurt Pad Guide - PF420-16 quantity
		PF420-10-SA-CP HANDLE ASSEMBLY, PF Series Vise	PF420-10-SA-CP	$58.00	PF420-10-SA-CP HANDLE ASSEMBLY, PF Series Vise quantity
2	2	Kurt Serrated Jaw - PF420-2S	PF420-2S	$405.00	Kurt Serrated Jaw - PF420-2S quantity
2	2	Kurt Dovetail Jaw - PF420-2D	PF420-2D	$405.00	Kurt Dovetail Jaw - PF420-2D quantity
2	2	Kurt Machinable Jaw - PF420-2C	PF420-2C	$87.00	Kurt Machinable Jaw - PF420-2C quantity
13	2	Kurt Screw, Drive, #2 X 0.25 - 07-0230	07-0230	$7.00	Kurt Screw, Drive, #2 X 0.25 - 07-0230 quantity
12	2	Kurt Dowel Pin 0.1875 x 0.5LG - 04-0028	04-0028	$7.00	Kurt Dowel Pin 0.1875 x 0.5LG - 04-0028 quantity
11	4	Kurt SBHCS 10-32 x 0.375 LG - 03-0021	03-0021	$7.00	Kurt SBHCS 10-32 x 0.375 LG - 03-0021 quantity
10	2	Kurt Protective Plug Assembly - 3600V-191-SA	3600V-191-SA	$7.00	Kurt Protective Plug Assembly - 3600V-191-SA quantity
