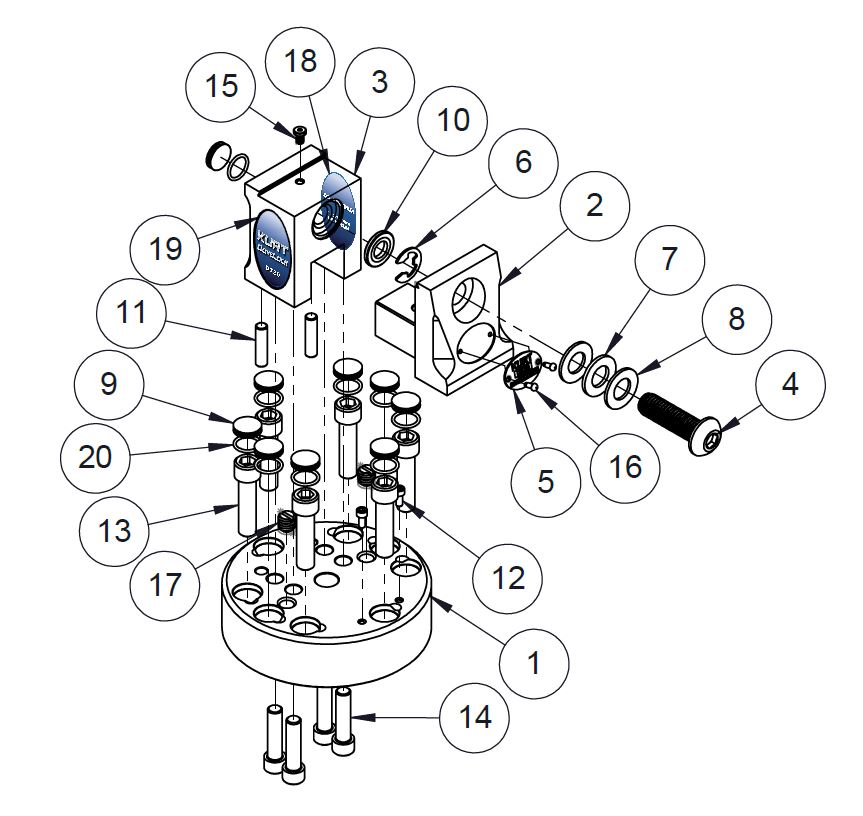

Kurt DT20 Vise Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
0Kurt Handle Assembly - D40XI-10-SAD40XI-10-SA$43.00
1Kurt DT20 DoveLock™ 5-Axis Vise Riser - DT20-1DT20-1$186.00
9Kurt Drawbar O-Ring, Buna N, #014 - 605-02605-02$5.00
21Kurt Movable - DT20-2-CPDT20-2-CP$163.00
31Kurt Stationary Jaw - DT20-6-CPDT20-6-CP$163.00
41Kurt SBHCS screw - DT20-18DT20-18$11.00
51Kurt THRUST BEARING - SDW25-41SDW25-41$10.00
62Kurt Thrust Bearing Washer - SDW25-42SDW25-42$9.00
82Kurt SHCS 6-32 x .375LG - 00-116000-1160$5.00
81Kurt BRUSH SEAL - SDW25-211SDW25-211$15.00
141Kurt Retaining Ring - DT20-231DT20-231$5.00
151Kurt LHCS 8-32 x 1/4LG - 00-318900-3189$5.00
162Kurt Screw, Drive, #2 X .25 - 07-023007-0230$5.00
172Kurt 3/8-16 slotted Cup Screw - DT20-196DT20-196$5.00
186Kurt SHCS 3/8-16 x 1.50LG - 00-135900-1359$5.00
194Kurt 5/16-24 x 1.25LG - 00-035700-0357$5.00
352Kurt 1/4- X 1.00LG DOWEL PIN - 04-004304-0043$5.00
